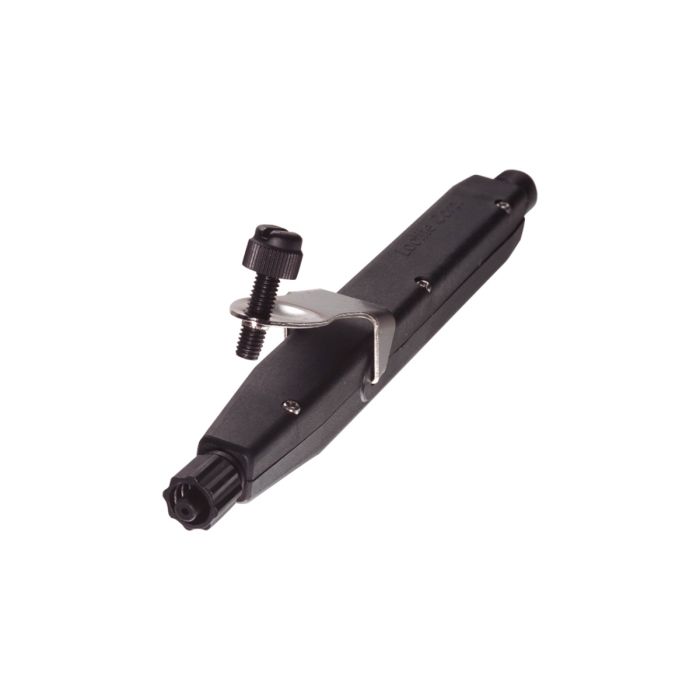

LOCTITE Vari-Drop Applicator with Tubing and Guards
ID: 194420
This applicator, with its 6.3 mm (0.25") PTFE-lined feed line tubing and spring guards, is a low-cost, manually controlled valve.
- Suitable for dispensing low- to medium-viscosity products
- The adjusting screw allows repeatable dispensing from drops to heavy beads
- Accepts a variety of dispensing needles to apply precise amounts of product
- Low cost
- Designed with light-blocking materials for light-curing adhesives
€242.74
Out of stock
The LOCTITE® Vari-Drop Applicator with 6.35 mm (0.25") PTFE-Lined Feed Line Tubing and Spring Guards allows repeatable dispensing from drops to heavy beads. The quantity applied is dependent on the stroke set for the trigger and how long the operator holds down the trigger. The Vari-Drop handheld dispensing valve uses an effective pinch-tube design and can be replaced in a matter of minutes. Included in the box: (1) Vari-Drop Applicator, (1) needle kit, (1) 2.13 m (7 ft) x 6.3 mm (0.25") OD, PTFE-lined hose with hose guards, (1) operating manual.
| Key characteristics | Stroke adjustment, Viscosity: low to medium viscosity |
|---|---|
| Applications | Dispensing adhesives |
| Used to dispense | Cyanoacrylates, Retaining compounds, Threadlockers, Light cure acrylics |
| Fluid pressure, Recommended | 100.0 psi |
| Dispense patterns | Beads, Dots, Drops |
| Air input pressure, Recommended | 100.0 psi |
| Viscosity, Recommended | 100.0 mPa·s - 80000.0 mPa·s |
| Status | On Demand |
