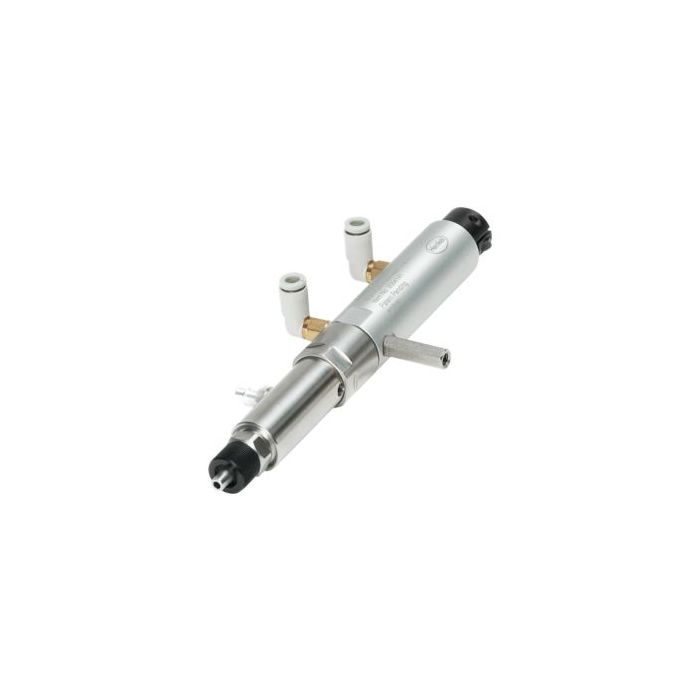

LOCTITE VA20 Volumetric Valve
ID: 2084141
This high-precision, positive displacement, volumetric metering valve is for dispensing drops of light-cure acrylics. For accurate, reliable, repeatable drop applications.
- Volumetric displacement dosing range: 1.5 to 12 microlitres
- Cycle rate: 180 cycles per min
- Estimated life >1 million cycles
- Designed for simple, no-mess priming: does not lose prime during operation
- Compact size
- Included in the box: (1) VA20 Volumetric Valve, (1) PTFE- lined tubing, 6.4 mm (0.25") OD, 2 m (6 ft) long, (1) air line 4 mm (0.16") OD, blue, 2 m (6 ft), (1) air line, 4 mm (0.16") OD, yellow, 2 m (6 ft), (1) needle sample kit, (1) operating manual.
€2,315.38
Out of stock
The LOCTITE® VA20 Volumetric Dispense Valve dispenses a precise drop of light-cure acrylic adhesive with each cycle. Positive displacement minimises dose size variation due to adhesive viscosity variations, as well as variations due to temperature changes and adhesive manufacturing variability.
| Key characteristics | Stroke adjustment |
|---|---|
| Applications | Dispensing adhesives |
| Used to dispense | Light cure acrylics |
| Air input pressure, Recommended | 60.0 psi - 100.0 psi |
| Viscosity, Recommended | 1.0 mPa·s - 10000.0 mPa·s |
| Status | On Demand |
