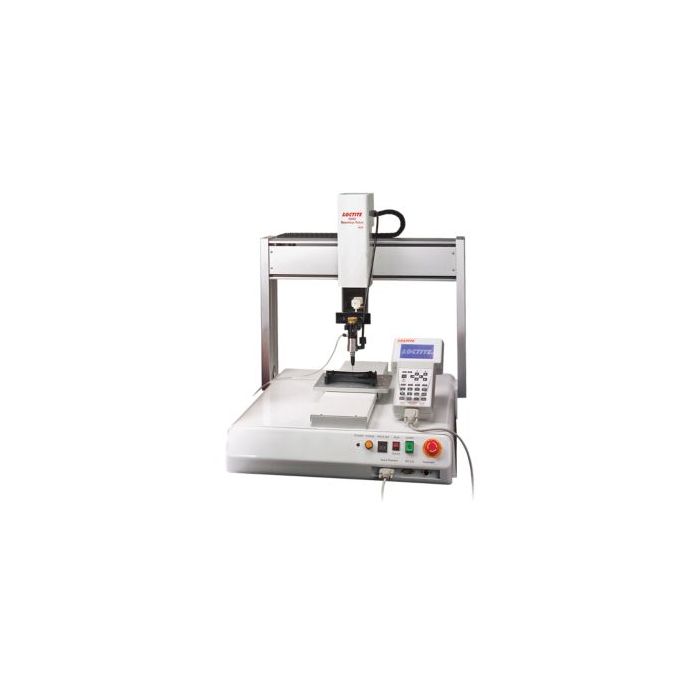

LOCTITE RB40 500 D-Series Benchtop Dispensing Robot
ID: 2103369
This dispensing robot with 3-axis control (500 x 500 x 100 mm) integrates easily with a range of LOCTITE dispensing and curing systems for fast and precise dispensing.
- High accuracy, speed and precision
- Integrated solution with plug-and-play accessories
- No programming experience required
- Wide variety of mounting hardware available
- Included in the box: (1) RB40 500D Benchtop Dispensing Robot, (1) power cord, (1) dispensing cable, (1) external interlock bypass connector, (1) Teach Pendant cable, (1) 30–55 ml syringe bracket and mounting screws, (1) CD-ROM operating manual
€16,683.78
In stock
The LOCTITE® RB40 500 D-Series Benchtop Dispensing Robot is designed for speed, precision, repeatability and quality. It has a 500 x 500 x 100 mm range of operation (X, Y, Z) and can be easily integrated with a variety of LOCTITE® dispensers, curing systems and other devices. Use with the simple-to-programme Teach Pendant. No programming experience needed!
| Key characteristics | Axis: 3-4 axis |
|---|---|
| Applications | Dispensing adhesives |
| Used to dispense | Adhesives-all |
| Operating type | Robotic |
| Portable weight limitations - tool light source | 5.0 kg |
| Maximum speed PTP - Z | 320.0 mm/s |
| Range of operation - X axis | 500.0 mm |
| Range of operation - Y axis | 500.0 mm |
| Portable weight limitations - work surface | 10.0 kg |
| Range of operation - Z axis | 100.0 mm |
| Maximum speed PTP - X,Y | 600.0 mm/s |
