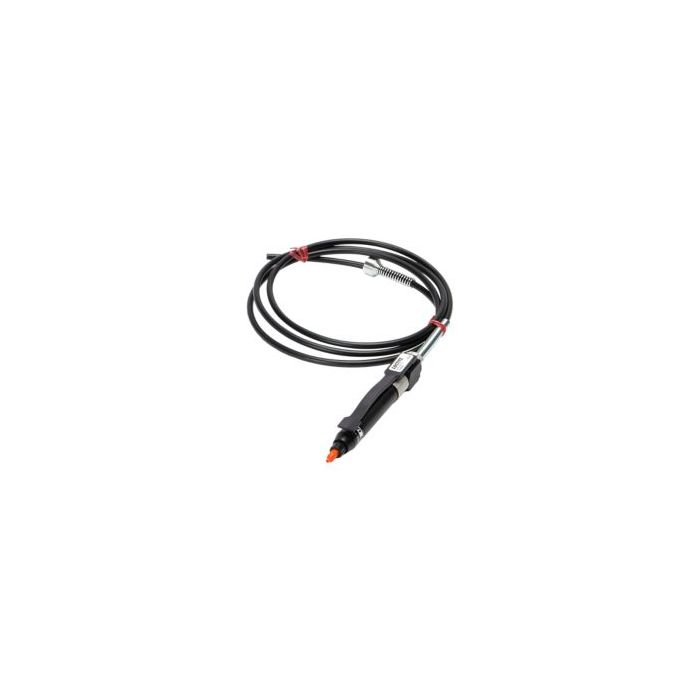

LOCTITE Handheld Manual Applicator, Finger Switch
ID: 88642
This applicator is specially designed for manual dispensing of 1-part products up to 15,000 mPa s viscosity with reduced hand fatigue.
- Included in the box: (1) Handheld Applicator, (1) applicator grip, (1) trigger lever, (1) needle kit, (1) operating manual.
€1,463.64
In stock
The LOCTITE® Manual Handheld Applicator is a pressure-time dispense valve actuated by a finger trigger, which is ergonomically designed for comfort and application control, and has low actuation force to reduce hand fatigue. It incorporates a suck-back feature, which prevents dripping or stringing. The valve can be used in conjunction with LOCTITE reservoirs as a substitute for the LOCTITE® Vari-Drop Applicator. If dispensing an adhesive over 15,000 mPa s, then a 10 cm (3.8") feed line upgrade kit is available that will allow dispensing of products up to 80,000 mPa s viscosity.
| Key characteristics | Stroke adjustment, Vacuum suck-back, Viscosity: low to medium viscosity |
|---|---|
| Applications | Dispensing adhesives |
| Used to dispense | Light cure acrylics, Retaining compounds, Threadlockers |
| Fluid pressure, Recommended | 4.0 psi - 35.0 psi |
| Air input pressure, Recommended | 60.0 psi - 60.0 psi |
