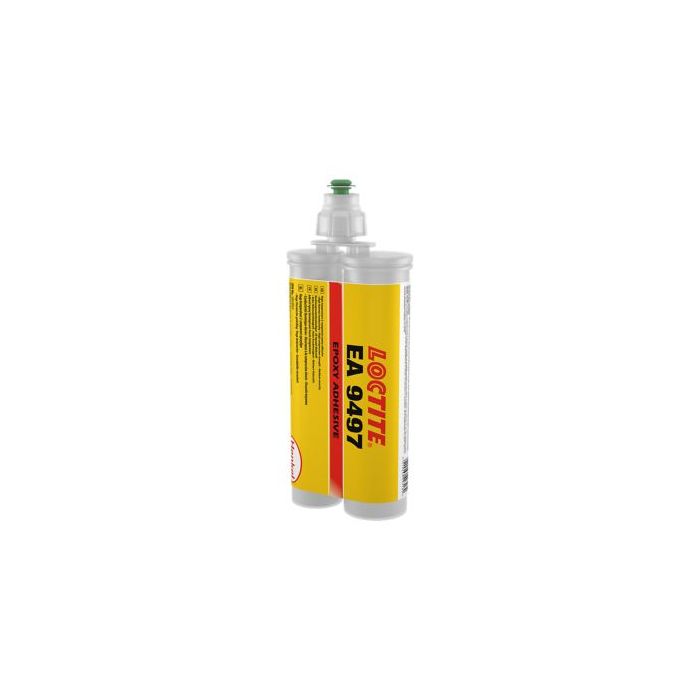

LOCTITE EA 9497, 50 ml Dual cartridge
ID: 2053807
This 2-part, medium-viscosity, high-performance adhesive is perfect for bonding metal sheets or electrical components when you need toughness and thermal conductivity.
- High-performance, thermally conductive structural bonder
- Temperature-resistant up to 200°C (392°F)
- High impact- and humidity resistance
- Large gap fill (up to 3 mm (0.11"))
- Room-temperature, heat or induction cure
€25.36
In stock
Technical and safety documents
Technical
Technical document
Safety
Safety document EN 1
Safety document EN 2
Safety document EN 3
Safety document EN 4
Safety document EN 5
Safety document LT 1
Safety document LT 2
Safety document LT 3
Safety document LT 4
Safety document LT 5
Safety document LV 1
Safety document LV 2
Safety document LV 3
Safety document LV 4
Safety document EE 1
Safety document EE 2
Safety document EE 3
Safety document EE 4
Safety document EE 5
LOCTITE® EA 9497 is a high-temperature-resistant structural bonder with thermal conductivity. This 2-part, medium-viscosity epoxy reliably bonds metal sheets or electrical components where toughness and thermal conductivity are required. Works in temperatures of up to 200°C (392°F) and provides large gap fill and high compression strength in harsh environments. Ideal for heat dissipation applications such as bonding metal sheets for high heat transfer and potting electrical components. It is also suitable for Surface Permanent Magnet (SPM) and Interior Permanent Magnet (IPM) bonding.
| Colour | Grey |
|---|---|
| Applications | Structural bonding |
| Cure type | Room temperature (ambient) cure |
| Number of components | 2 part |
| Shear strength, Mild Steel (grit blasted) | 20.0 N/mm² |
| Mix ratio, by volume | 2 : 1 |
| Mix ratio, by weight | 100 : 50 |
| Pot life, @ 25.0 °C | 165.0 min. - 255.0 min. |
| Thermal conductivity | 1.4 W/mK |
| Casson viscosity, cone & plate, @ 25.0 °C Shear Rate 0 to 40 s⁻¹ | 8.0 Pa∙s - 24.0 Pa∙s |
| Status | In Stock |
