LOCTITE Digital Syringe Dispenser
ID: 883976
This digital syringe dispenser is a semi-automatic system designed to dispense LOCTITE adhesives and fluids packaged in 3, 5, 10, 30 and 55 ml (0.1, 0.17, 0.34, 1 and 1.86 oz) syringes, and 300 ml (10 oz) cartridges.
- Cost-effective for dispensing LOCTITE adhesives in syringes
- Simple, easy operation
- Vacuum suck-back can effectively control product dripping or stringing
- Easily integrates with other LOCTITE equipment
- Three operating modes: manual, incremental, timed
- Convenient “teach mode” – unit learns time required based on how long foot pedal is depressed
- Cycle counter is clearly displayed in the LCD screen
- Unit can be integrated into customer’s PLC programming to initiate a dispense cycle
€798.24
In stock

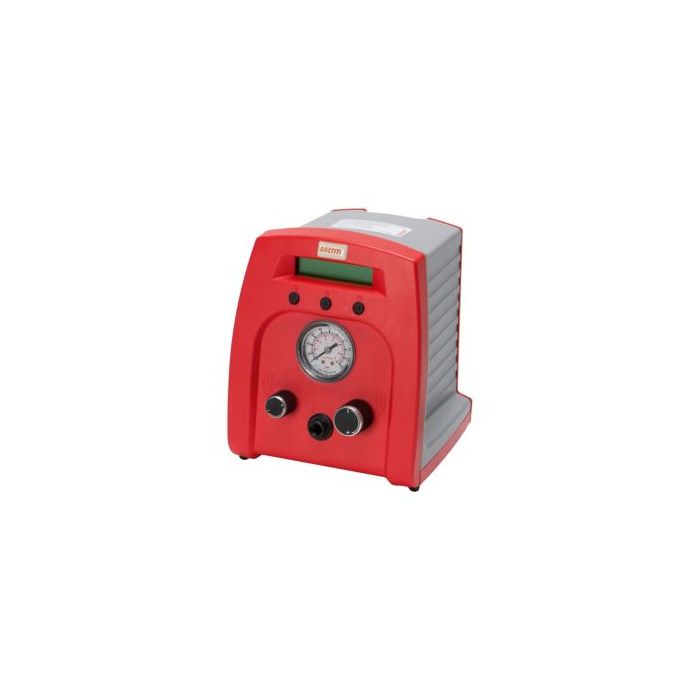

The LOCTITE® Digital Syringe Dispenser is a semi-automatic dispensing system for LOCTITE adhesives and fluids in 3, 5, 10, 30 and 55 ml (0.1, 0.17, 0.34, 1 and 1.86 oz) syringes, and 300 ml (10 oz) cartridges. The unit has digital timing control with decimal settings to 0.001 seconds for increased precision over typical pressure-time systems. An adjustable pressure regulator controls a pulse of air, and when used in conjunction with an air line adapter attached to an adhesive syringe barrel, will provide a controlled dispensed amount of adhesive. The system can be operated in manual, incremental or timed (automatic) mode to dispense dots, beads, or to fill syringes. Included in the box: (1) Digital Syringe Dispenser, (1) universal power cord/adapter, (1) foot switch, (1) syringe stand, (1) 10 ml (0.3 oz) air line adapter, (1) 30 ml (1 oz) air line adapter, (1) air line support mast, (1) needle sample kit, (1) inlet air hose fitting kit, (1) 30/55 ml (1/2 oz) syringe air line adapter, (1) inlet air hose (6 mm / 0.24" O.D. x 2 m / 6 ft length), (1) operating manual
| Key characteristics | Vacuum suck-back, Viscosity: low to paste viscosity |
|---|---|
| Applications | Dispensing adhesives |
| Used to dispense | Adhesives-gel, Cyanoacrylates, Light cure acrylics |
| Operating type | Pneumatic, Pressure-time |
| Dispense patterns | Beads, Dots, Drops |
| Fluid pressure | 0.0 psi - 100.0 psi |
| Works with package types & sizes | Syringe, 3 ml, Syringe, 5 ml, Syringe,10 ml, Syringe, 30 ml, Syringe, 55 ml, Cartridge, 300 ml |
| Air input pressure | 35.0 psi - 100.0 psi |
