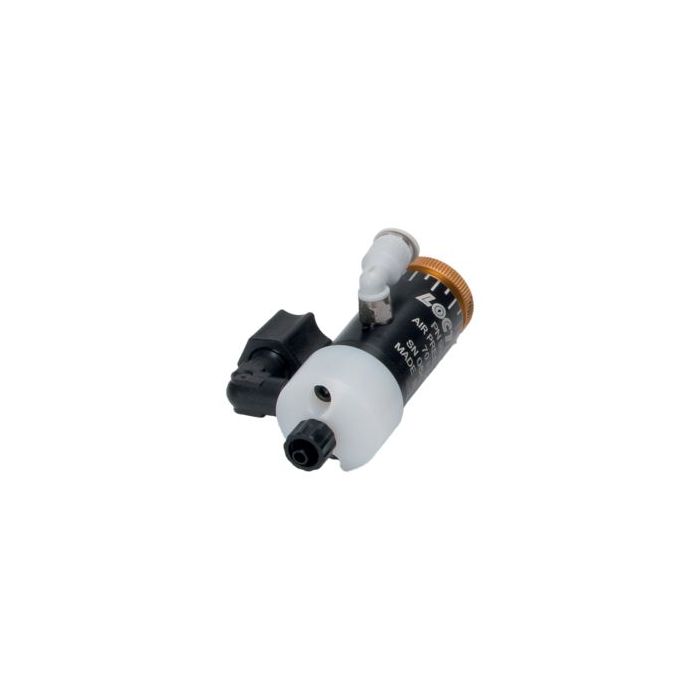

LOCTITE Cyanoacrylate Dispense Valve
ID: 318654
This consistent, no-drip diaphragm dispensing valve is suitable for all LOCTITE cyanoacrylate products, retaining compounds and threadlockers. Easy to clean, rebuild and return to service.
- For dispensing LOCTITE cyanoacrylate adhesives using LOCTITE reservoirs
- Compact size and weight
- High-resolution stroke adjustment
- Field-serviceable
- Included in the box: (1) Cyanoacrylate Dispense Valve, (1) air line tubing, 15 m (5 ft) (attached to valve), (1) product tubing, 2 m (6 ft), 6.4 mm (¼"). OD, PTFE-lined, (1) valve mount screw, (1) needle kit, (1) operating manual.
€1,055.00
In stock
The LOCTITE® Cyanoacrylate Dispense Valve provides high-resolution stroke adjustment and results in consistent flow control and bubble-free, no-drip dispensing for all LOCTITE cyanoacrylate products. The simple, seal-less design facilitates field repair. Each one has a small profile with a 2.28 cm (0.9") diameter and 6.35 cm (2.5") length.
| Key characteristics | Stroke adjustment, Viscosity: low to medium viscosity |
|---|---|
| Applications | Dispensing adhesives |
| Used to dispense | Cyanoacrylates, Retaining compounds, Threadlockers |
| Operating type | Diaphragm, High precision |
| Fluid pressure, Recommended | 70.0 psi |
| Dispense patterns | Beads, Dots, Drops, Microdots |
| Air input pressure, Recommended | 70.0 psi - 90.0 psi |
| Status | In Stock |
