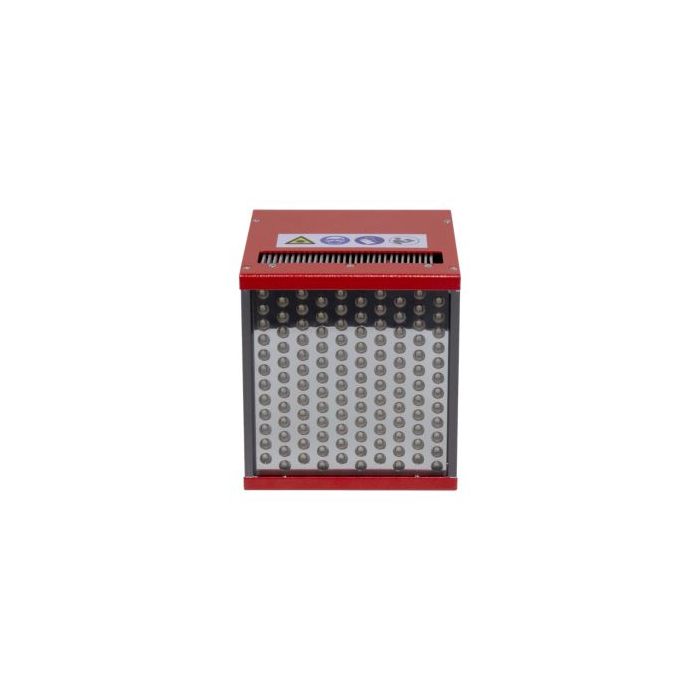

LOCTITE CL42 LED Flood Curing Light Source, 365 nm
ID: 2804955
Part of a high-intensity flood system specially designed for curing LOCTITE® UV and visible light cure adhesives.
- Long life, energy-efficient, instant on/off
- High UV-intensity: up to 2.5 W/cm²
- Large cure area: 100 x 100 mm ( 3.93 x 3.93")
- LED heads side-by-side stackable
- Included in the box: (1) CL42 Light Source, (1) connection cable, (1) operating manual
€3,354.16
In stock
LOCTITE® CL42 LED Flood Curing Light Sources are part of the LOCTITE® CL42 LED Flood Curing System, specially designed for curing LOCTITE® UV and visible light cure adhesives. The modular configuration consists of LED light sources with controller and connection cable. The system is offered in either 365 nm or 405 nm wavelengths. Each CL42 head is equipped with 120 high power LEDs and integrated reflectors, providing uniform curing across a wide area (100 x 100 mm / 3.93 x 3.93"). The expected lifetime of the LEDs is more than 20,000 hours under normal operating conditions. The system is compatible with a manual workstation as well as with automated production lines. It can be operated via a foot switch, or a PLC run in either timer or continuous mode. Long-life, energy-efficient, instant on/off performance: the LOCTITE CL42 is a great choice among dual-control light-curing flood lamp systems.
| Applications | LED flood array curing |
|---|---|
| Bulb type | LED |
| Light intensity | 0.0 W/cm² - 2.5 W/cm² |
| Used to dispense | UV and visible light cure adhesives |
| Wavelength, #2804955 | 365.0 nm |
| Wavelength, #2804956 | 405.0 nm |
