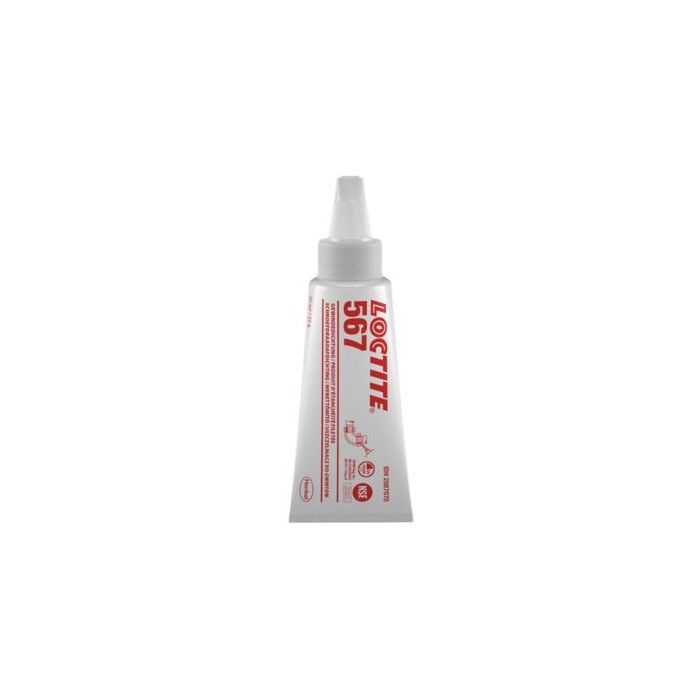

LOCTITE 567, 50 ml Tube
ID: 2087070
A 1-part, low-strength, high-viscosity thread sealant that is UL classified and ideal for tapered, coarse threads. It’s specially formulated to offer easy assembly and removal.
- 1-part: no mixing required
- Doesn’t creep, shrink or block systems
- Ideal for metal pipes and fittings
- Provides an instant low-pressure seal
- NSF/ANSI 61 certified
- UL MH8007 & ULC MH27131 classified
- KIWA GASTEC QA AR 214 certified for hydrogen gas systems
€56.40
Out of stock
How to use it
1. Preparation
Cleaning - It is recommended to use LOCTITE® SF 7063/7064 to degrease and clean surfaces prior to applying adhesive. If cure speed is too slow due to passive metals (stainless steel, aluminium and plated metals) or low temperature (below 5°C), apply activator LOCTITE® SF 7240 or LOCTITE® SF 7649 (see cure speed vs activator graph in the TDS).
2. Preparation - Activation
If cure speed is too slow due to passive metals (stainless steel, aluminum and plated metals) or low temperatures (below 5°C), use LOCTITE® SF 7649 activator. Allow to dry.
3. Application
Apply a 360° bead to the leading male thread, leaving the first thread free. For bigger threads, apply both on male and female threads. For manual dispensing the use of a peristaltic handgun is recommended to ensure a consistent application volume.
4. Assembly
Assemble fittings using wrench tightening in accordance with manufacturers' recommendations.
Disassembly
Disassemble with standard hand tools. If not possible, apply localised heat to approximately 260°C and disassemble while hot. For corroded or seized parts, use LOCTITE® LB 8040 Freeze and Release.
Technical and safety documents
LOCTITE® 567 is a white, 1-part thread sealant designed for the locking and sealing of tapered metal pipe threads and fittings. As an anaerobic-curing thread sealant, it cures when confined in the absence of air between close-fitting metal surfaces and prevents loosening and leakage due to shock and vibration. Its high lubricating properties prevent galling on stainless steel, aluminium and all other metal pipe threads, and allow easy disassembly. The product offers high temperature performance and oil tolerance. And it tolerates minor surface contamination from various oils, such as cutting, lubrication, anti-corrosion and protection fluids.
Meets the performance requirements of KIWA GASTEC QA AR 214 for admixtures up to and including 100% hydrogen gas – certifications are available in select countries.
| Recommended for use with | Metal, Metal: aluminium, Metal: steel - stainless steel, Metal: steel - galvanized steel, Thread type: coarse, Thread type: tapered |
|---|---|
| Key characteristics | Strength: low Strength, Thixotropic, Oil tolerant, Immediate low pressure sealing, Temperature: high temperature |
| Colour | Off white |
| Agency approvals / certificates / specifications | UL |
| Applications | Thread sealing, Pipe sealing |
| Technology | Acrylic |
| Physical form | Paste |
| Cure type | Anaerobic cure |
| Chemical basis / base | Methacrylate |
| Viscosity, 20 RPM | 540000.0 mPa·s |
| Operating temperature | -55.0 °C - 200.0 °C ( -65.0 °F - 400.0 °F ) |
| Breakaway torque, Steel M10 | 12.0 N·m ( 110.0 in./lb. ) |
| Pressure resistance | 10000 |
| Viscosity, Brookfield - RVF, @ 25.0 °C | 280000.0 - 800000.0 |
| Status | On Demand |
