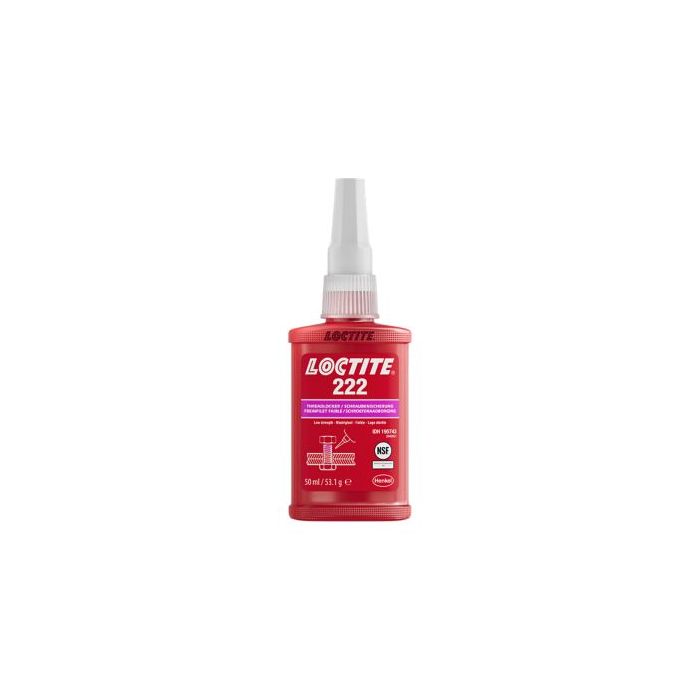

LOCTITE 222, 50 ml Bottle
ID: 195743
Low-strength threadlocker, ideal for the locking and sealing of small fasteners under 6.35 mm (1/4") in diameter. Prevents loosening from shock and vibration, removable with hand tools.
- Ideal for low-strength threadlocking of adjustment screws, countersunk head screws and set screws
- Prevents fastener loosening on vibrating assemblies, e.g. pumps, gear boxes, presses
- Ideal for small thread sizes up to 6.35 mm (1/4")
- Can be disassembled with ordinary hand tools for easy service and maintenance
€45.72
In stock
How to use it
1. Preparation - Cleaning
It is recommended to use LOCTITE® SF 7063/7064 to degrease and clean surfaces prior to applying adhesive.
2. Preparation - Activation
If cure speed is too slow due to passive metals (stainless steel, aluminium and plated metals) or low temperature (below 5°C), use activator LOCTITE® SF 7240 or LOCTITE® SF 7649 (see cure speed vs activator graph in the TDS).
3. Application
Apply liquid threadlocker to the engagement area. For manual dispensing the use of a peristaltic handgun is recommended to ensure a consistent application volume.
4. Application - Through Hole
Insert bolt and apply threadlocker to the exposed thread. Assemble nut and tighten to the correct/specified torque.
5. Application - Blind Hole
Apply into lower third of blind hole.
6. Assembly
Assemble and tighten. If several bolts are being assembled, torque them down to the correct value within the fixture.
7. Disassembly
Disassemble with standard hand tools.
Hint
For the disassembly of corroded or seized parts use LOCTITE® LB 8040 Freeze and Release.
Technical and safety documents
If you’re working with small-diameter screws made of low-strength metals (e.g. aluminium or brass), try LOCTITE® 222. It is ideal for low-strength threadlocking of adjustment screws, countersunk head screws, and set screws.
| Recommended for use with | Metal, Metal: passive metal |
|---|---|
| Fixture time | 20.0 min. |
| Key characteristics | Thixotropic, General purpose, Strength: low Strength, Fluorescent, Disassembly: removable, Mix: no mix required |
| Colour | Purple |
| Agency approvals / certificates / specifications | NSF P1 Reg. No 123002 |
| Viscosity, Speed 20 RPM | 1200.0 mPa·s (cP) |
| Breakaway torque, M10 Steel Nuts/Bolts | 6.0 N·m ( 50.0 in./lb. ) |
| Prevail torque, M10 Steel Nuts/Bolts | 4.0 N·m ( 35.0 in./lb. ) |
| Application temperature | -55.0 °C - 150.0 °C ( -65.0 °F - 300.0 °F ) |
| Applications | Threadlocking |
| Technology | Acrylic |
| Physical form | Liquid |
| Application method | Dispense system, Manual |
| Cure type | Anaerobic cure |
